high pressure mini diaphragm air pump

Basic Information
Place of Origin: Xiamen China
Brand Name: AJK
Certification: RoHS
Model Number: AJK-B3206
Minimum Order Quantity: 1PCS
Price: USD 2.5-4.5USD/PCS
Packaging Details: 200PCS/CARTON (395*315*360MM)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500000PCS/MONTH
Contact Now
Structure: Diaphragm Application: Medical Device; Health Care Equipment; Household Appliance

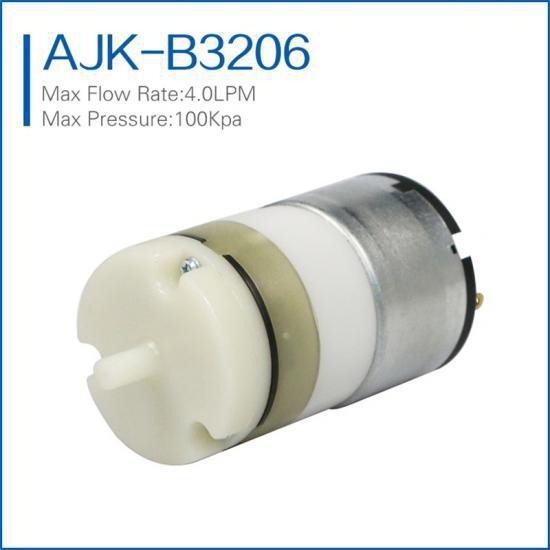

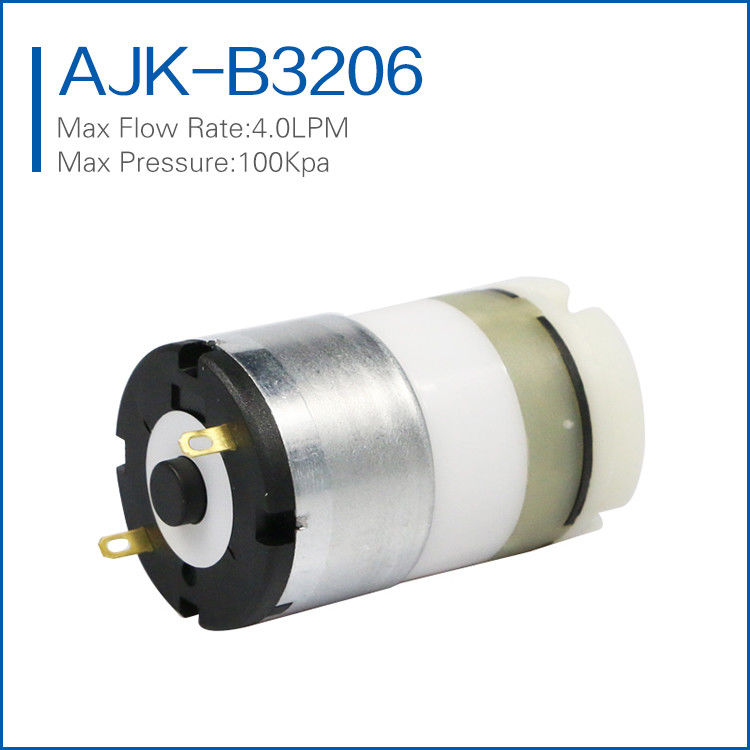

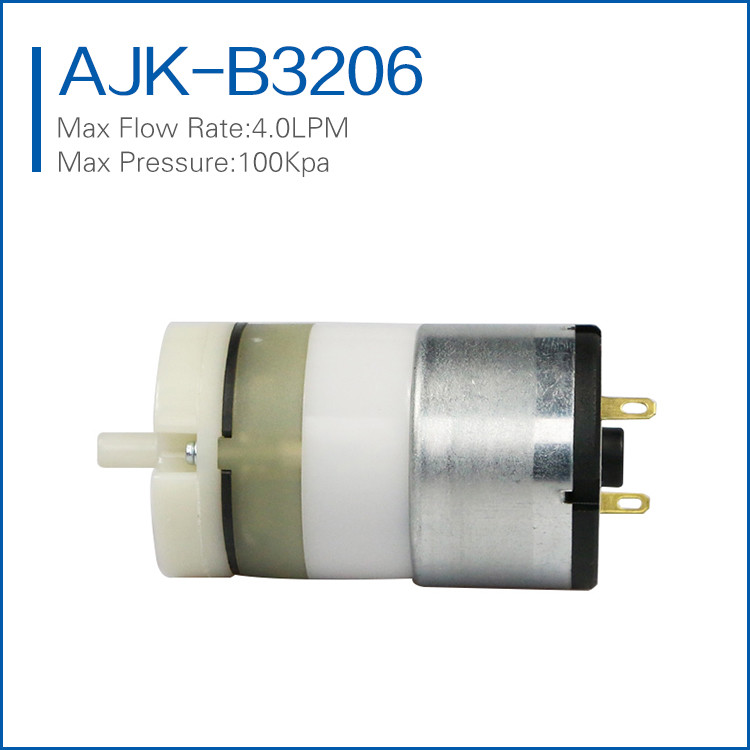

high pressure mini diaphragm air pump

A high flow miniature air pump with stable performance and good dry running characteristics. It is compact, lightweight and customizable.

  • Item No.:

    AJK-B3206 (6-24V)
  • Free Flow:

    4 L/min
  • Max Pressure:

    100 kPa
  • DC Voltage:

    6/12/24 V
  • Applications:

    Medical equipment, healthcare equipment, household appliances
Product Details:

AJK DC 6 12 24 V Small Diaphragm Air Pump B3206 is a 32 mm wide pump that delivers up to 4 L/min of flow. Customization available on your specific needs and life expectations.



1.High pressure, high flow, stable performance, high efficiency and long life.

2.Our micro gas pumps are designed with low vibration, low noise and low power consumption.

3.100% oil free mini air pumps that maintain the purity of your system and are commonly used in FDA-approved systems.

4.ISO9001, CB, FDA, PAHs, REACH, RoHS compliant.


Typical Applications:

Blood pressure monitor


Coffee maker

Bubble machine

Massage chair

Car massage seat


Model Rated Voltage Rated Current Free Flow Max Pressure Noise Media
AJK-B3206 DC 6.0 V < 600 mA 4.0 L/min 100 kPa < 60 dB Air/Gas
DC 12.0 V < 500 mA 4.0 L/min 100 kPa < 60 dB Air/Gas
DC 12.0 V < 250 mA 4.0 L/min 100 kPa < 60 dB Air/Gas


Dimension Drawing:

high pressure mini diaphragm air pump


high pressure mini diaphragm air pump
