high pressure DC vacuum pump

Basic Information
Place of Origin: Xiamen China
Brand Name: AJK
Model Number: AJK-B2801
Minimum Order Quantity: 1PCS
Price: USD 11-17USD/PCS
Packaging Details: 210PCS/CARTON (405*315*260mm)
Delivery Time: 5-8 Work Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500000PCS/MONTH
Contact Now

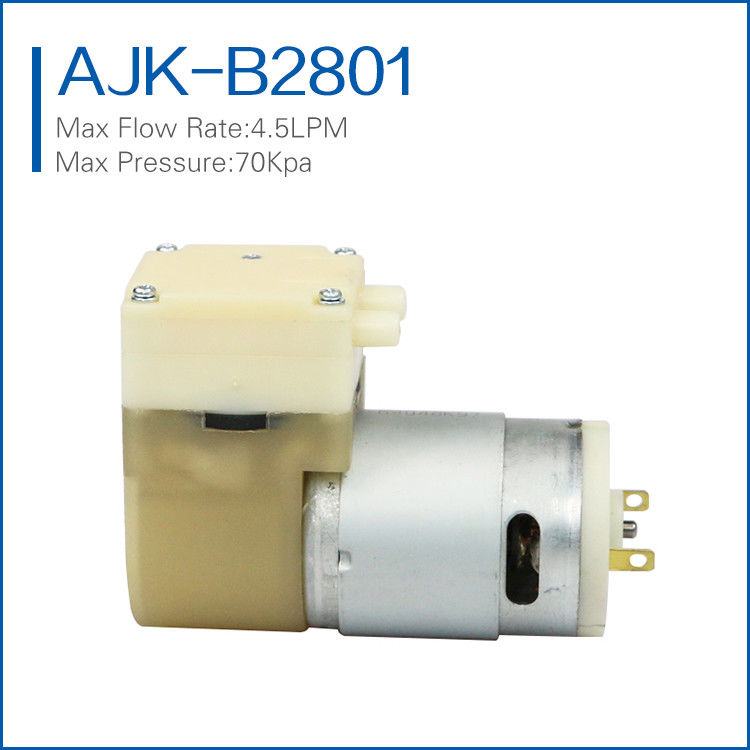

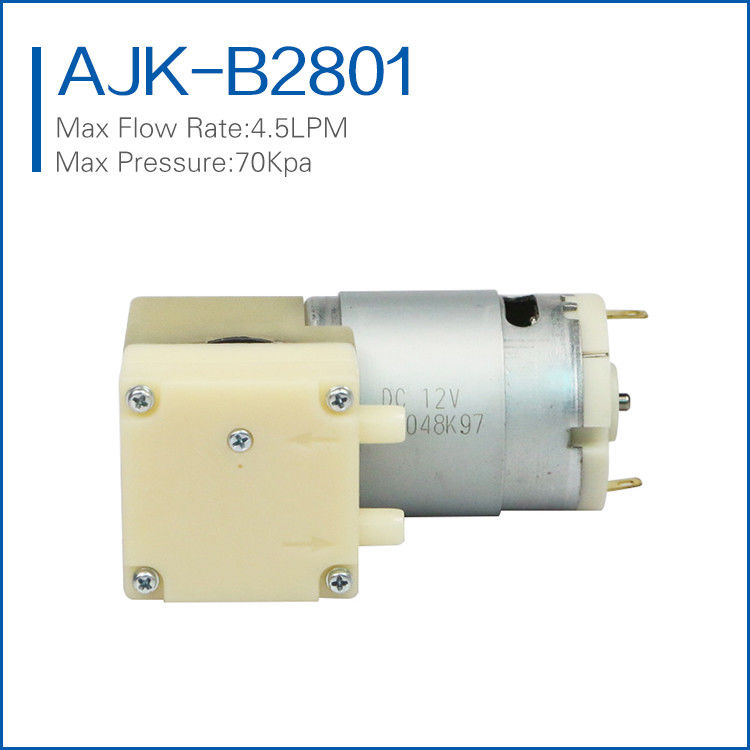

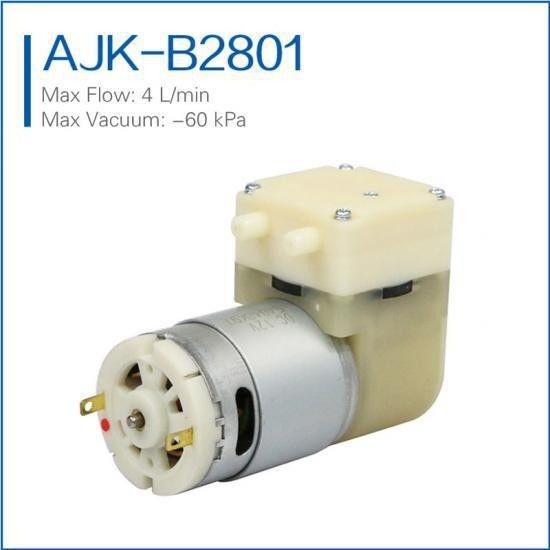

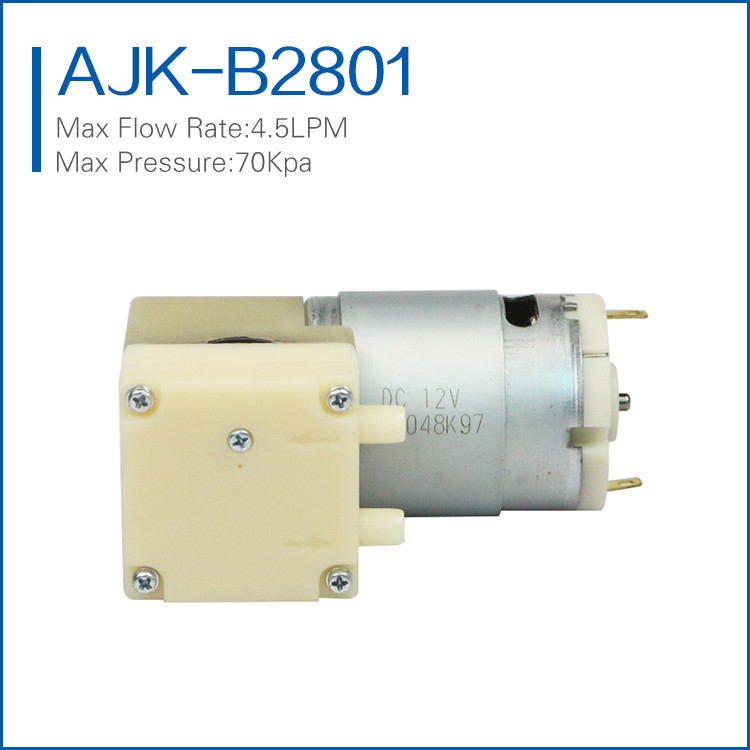

high pressure DC vacuum pump

DC large flow mini vacuum pumps with stable performance and long service life.

  • Item No.:

    AJK-B2801 (5-24V)
  • Free Flow:

    4 L/min
  • Max Pressure:

    -60~70 kPa
  • DC Voltage:

    5/12/24 V
  • Applications:

    Medical equipment, healthcare equipment, household appliances
Contact Us
Product Details

AJK 5V 12V 24V DC diaphragm micro vacuum pumps with 4.5 L/min free flow rate and -60~70 kPa pressure, configured with built-in pressure switch, widely used for breast massage, double-headed electric breast pumps, medical and beauty instruments.

Product Features:

Longer lifespan based on its high performance plastic, diaphragm and superior quality motor.

100% oil and grease-free pump maintains the purity of your system and are commonly used in FDA-approved systems.

Our diaphragm pumps are uniquely balanced to minimize noise and vibration.

ISO9001, CB, FDA, PAHs, REACH, RoHS compliant.

Typical Applications:

Breast massage

Double-headed electric breast pump

Beauty massage

Vacuum sealing machine

Medical consumer device

Household appliance



Rated Voltage

Rated Current

Free Flow

Max Pressure




DC 5.0 V

< 900 mA

4.0 L/min

-60~70 kPa

< 65 dB


DC 12.0 V

< 600 mA

4.0 L/min

-60~70 kPa

< 65 dB



Dimension Drawing:

high pressure DC vacuum pump


high pressure DC vacuum pump
