| Place of Origin: | Xiamen China |
|---|---|
| Brand Name: | AJK |
| Model Number: | AJK-B2707 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD 9-14USD/PCS |
| Packaging Details: | 240PCS/CARTON (405*315*260mm) |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 500000PCS/MONTH |

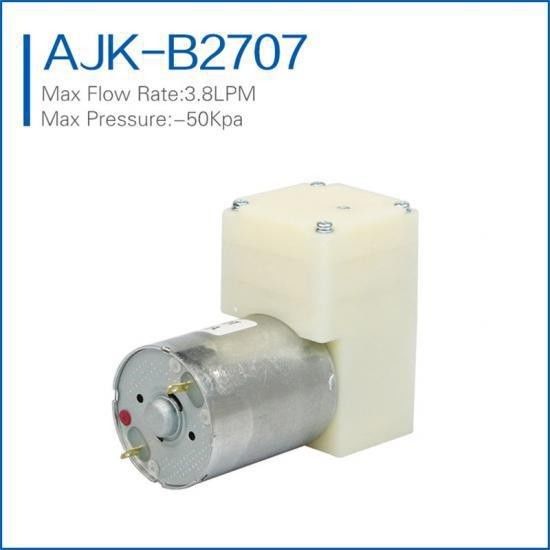

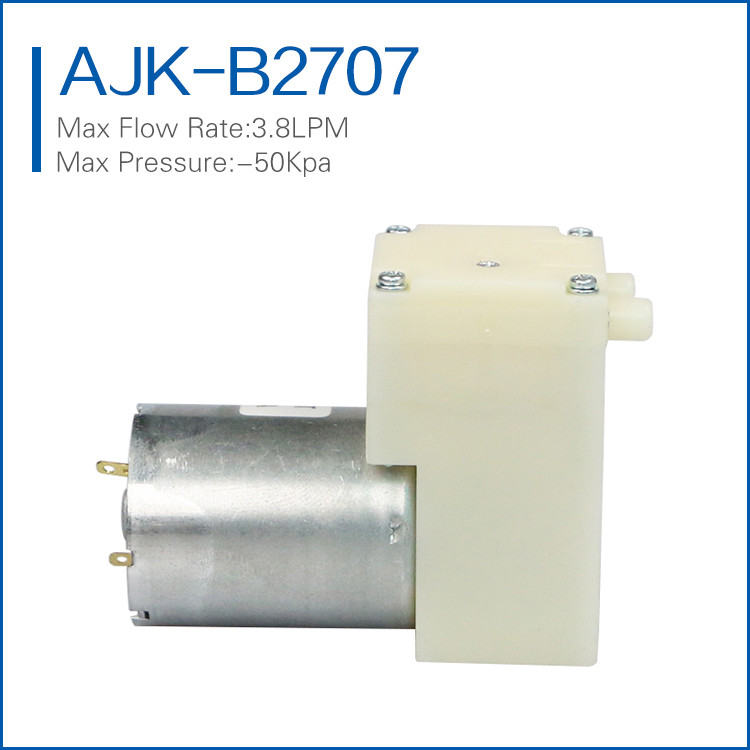

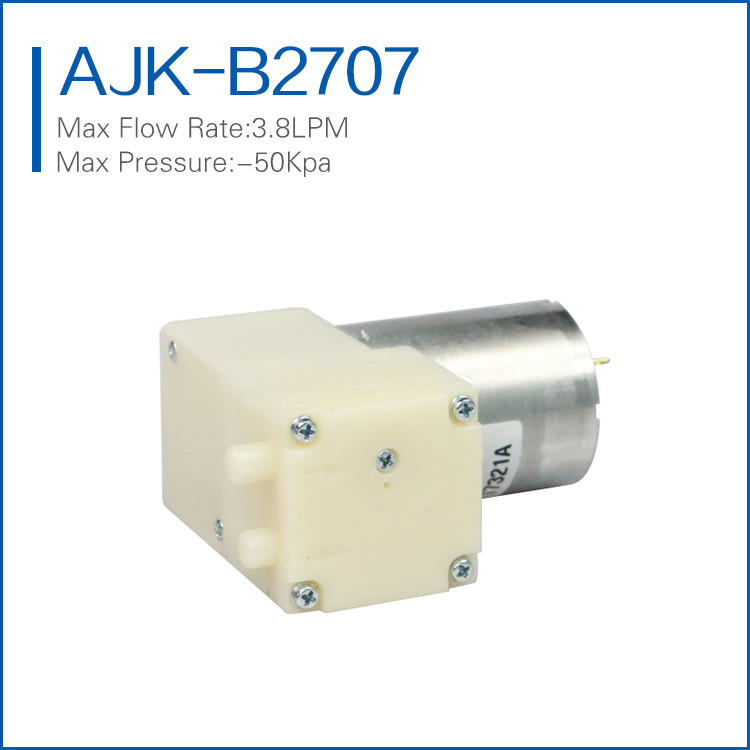

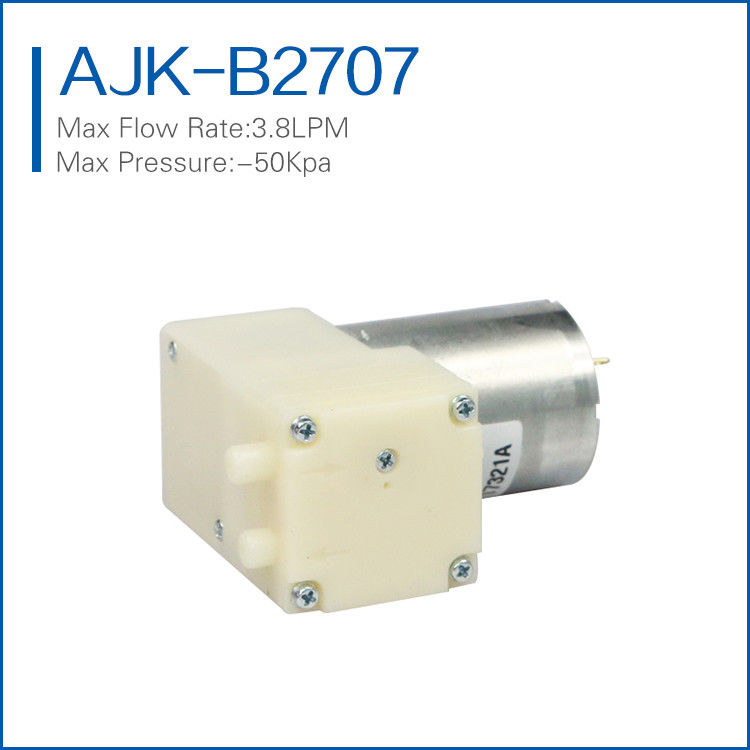

Micro DC 4.8V 6V 12V portable high flow micro vacuum pumps with inside pressure switch.
Item No.:
AJK-B2707 (4.8-12V)Free Flow:
3.8 L/minMax Pressure:
-50~60 kPaDC Voltage:
6/12/24 VApplications:
Medical equipment, healthcare equipment, household appliancesAJK 4.8V 6V 12V DC mini diaphragm vacuum pump with 3.8 L/min free flow rate and -50~60 kPa pressure, configured with inside pressure switch, widely used for breast massage, double-headed electric breast pumps, medical and beauty instruments.
Product Features:
Longer lifespan based on its high performance plastic, diaphragm and superior quality motor.
100% oil and grease-free pumps maintain the purity of your system and are commonly used in FDA-approved systems.
Supporting both portable and battery powered instruments.
ISO9001, CB, FDA, PAHs, REACH, RoHS compliant.
Typical Applications:
Breast massage
Double-headed electric breast pump
Beauty massage
Vacuum sealing machine
Medical consumer device
Household appliance
...|
Model |
Rated Voltage |
Rated Current |
Free Flow |
Max Pressure |
Noise |
Media |
|
AJK-B2707 |
DC 4.8 V |
< 550 mA |
3.8 L/min |
-50~60 kPa |
< 65 dB |
Vacuum/Air |
|
DC 6.0 V |
< 700 mA |
3.8 L/min |
-50~60 kPa |
< 65 dB |
Vacuum/Air |
|
|
DC 12.0 V |
Dimension Drawing:
Curve:
