Structure: | Diaphragm | Application: | Electric Massage Chair; Auto Seat Comfort |
---|
A large flow mini air pump specially designed for automotive seat system. It is compact, lightweight and customizable.
Item No.:
AJK-B4004 (12/24V)Free Flow:
8 L/minMax Pressure:
50 kPaDC Voltage:
12/24 VApplications:

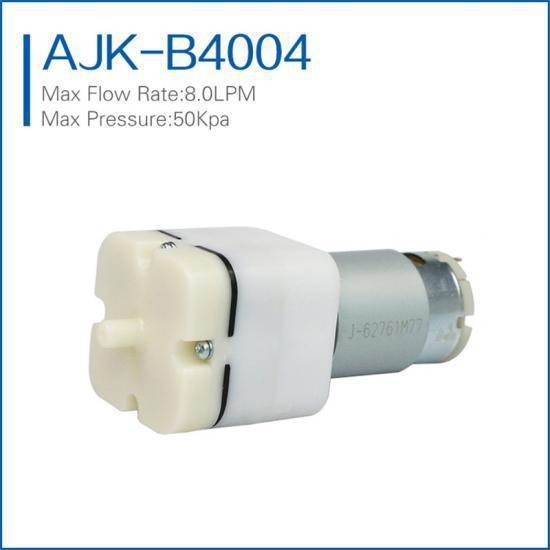

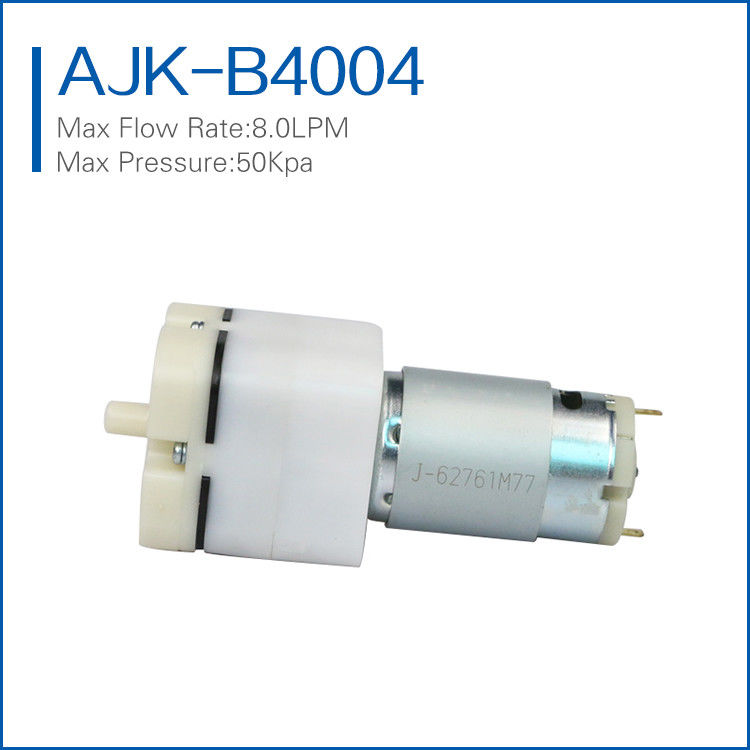

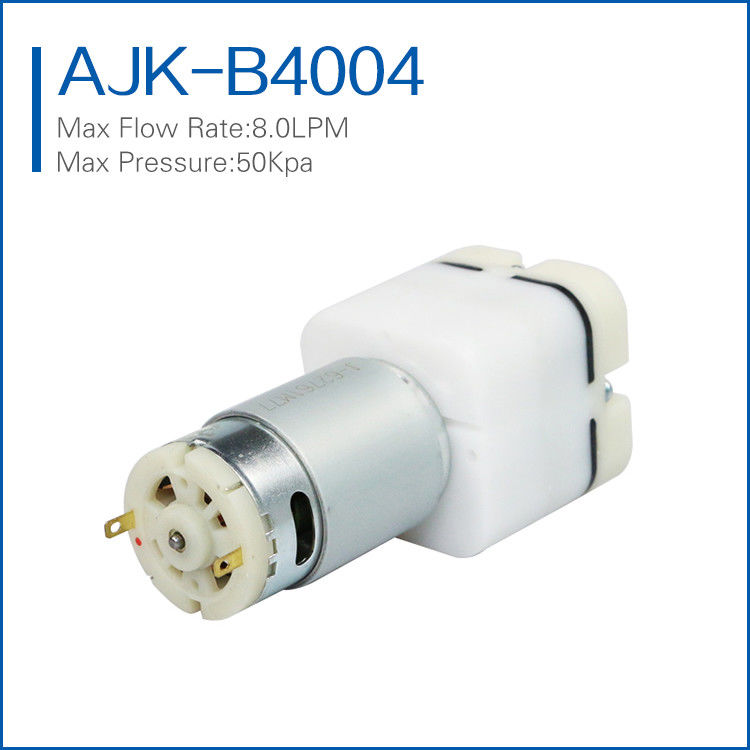

Medical equipment, healthcare equipment, household appliancesAJK DC 12 24 V Automotive Micro Air Pump B4004 is a compact 39 mm wide pump that delivers up to 8 L/min of flow. Customization is available on your specific needs and life expectations.
Features:
1.For automobile seat massaging system and lumbar support.
2.High flow rate, stable performance, high efficiency and long life.
3.Our micro gas pumps are designed with low vibration, low noise and low power consumption.
4.100% oil free small air pumps that maintain the purity of your system.
5.ISO9001, CB, FDA, PAHs, REACH, RoHS compliant.
Typical Applications:
Car massage seat
Car lumbar support
Massage chair
...
Model |
Rated Voltage |
Rated Current |
Free Flow |
Max Pressure |
Noise |
Media |
AJK-B4004 |
DC 12.0 V |
< 700 mA |
8.0 L/min |
50 kPa |
< 60 dB |
Air/Gas |
DC 24.0 V |
< 450 mA |
8.0 L/min |
50 kPa |
< 60 dB |
Air/Gas |
Dimention Drawing:
Curve:
