| Place of Origin: | Xiamen China |
|---|---|
| Brand Name: | AJK |
| Certification: | RoHS |
| Model Number: | AJK-B2106 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD 2.5-5USD/PCS |
| Packaging Details: | 390PCS/CARTON (395*315*260MM) |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 500000PCS/MONTH |
| Structure: | Diaphragm | Application: | Medical Device; Health Care Equipment; Household Appliance |
|---|

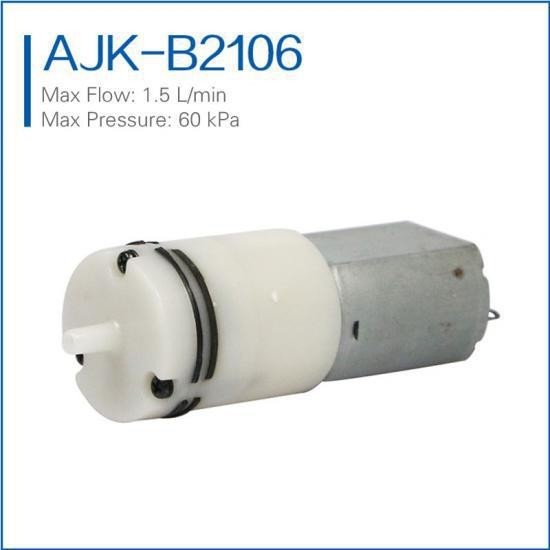

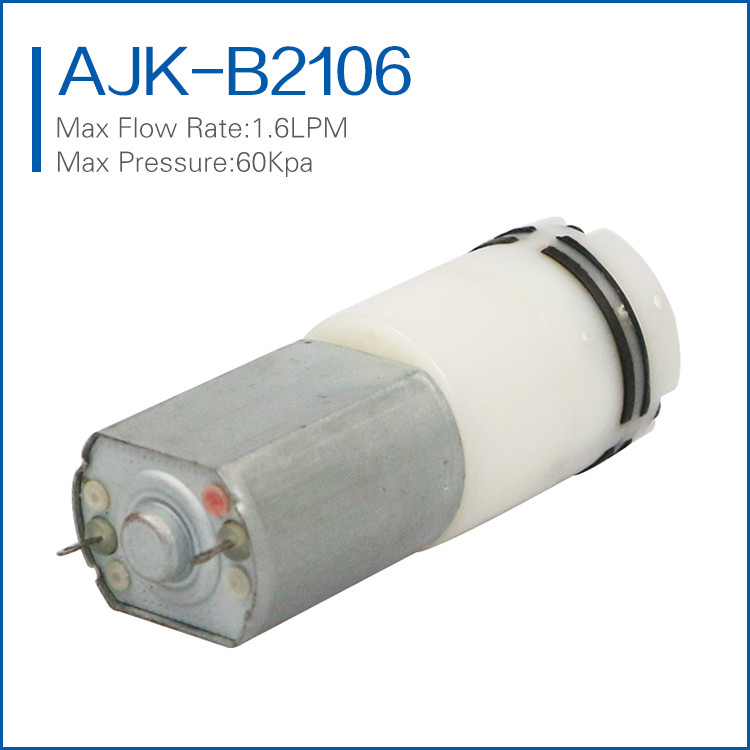

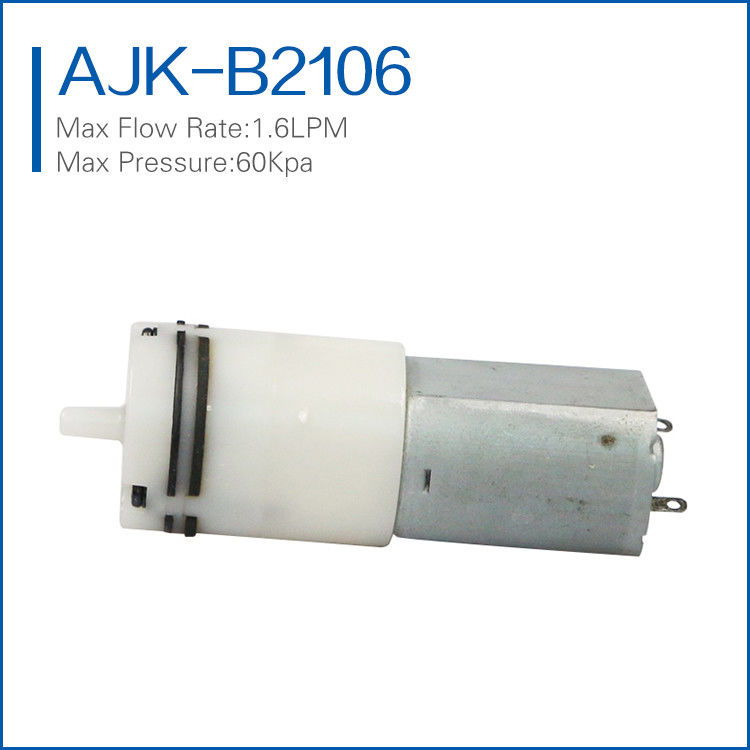

DC 3V mini air pump with low flow rate, widely used for beauty instruments and medical equipment.
Item No.:
AJK-B2106 (3V)Free Flow:
1.5 L/minMax Pressure:
60 kPaDC Voltage:
3 VApplications:
Medical equipment, healthcare equipment, household appliancesAJK low flow micro air pump 3Vwith 1.5 L/min free flow rate and 60 kPa pressure. It could be customized to meet your specific needs and life expectations.
Product Features:
1.Professional and high-efficiency designs enable the pumps to have a delicate and ingenious appearance.
2.A small diaphragm air pump with a unique, compact and lightweight design, ideal for portable applications.
3.Longer lifespan with its high performance plastic, diaphragm and superior quality motor.
4.ISO9001, CB, FDA, PAHs, REACH, RoHS compliant.
Typical Applications:
Beauty instrument
Medical consumer device
...
|
Model |
Rated Voltage |
Rated Current |
Free Flow |
Max Pressure |
Noise |
Media |
|
AJK-B2106 |
DC 3.0 V |
< 800 mA |
1.5 L/min |
60 kPa |
< 65 dB |
Air |
Dimention Drawing:
Curve:
