Low Flow Lightweight Micro Air Pump

Basic Information
Place of Origin: Xiamen China
Brand Name: AJK
Certification: RoHS
Model Number: AJK-B1401
Minimum Order Quantity: 1PCS
Price: USD 1.5-2.5USD/PCS
Packaging Details: 1000PCS/CARTON (305*290*400MM)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500000PCS/MONTH
Contact Now
Structure: Diaphragm Application: Medical Device; Health Care Equipment; Household Appliance

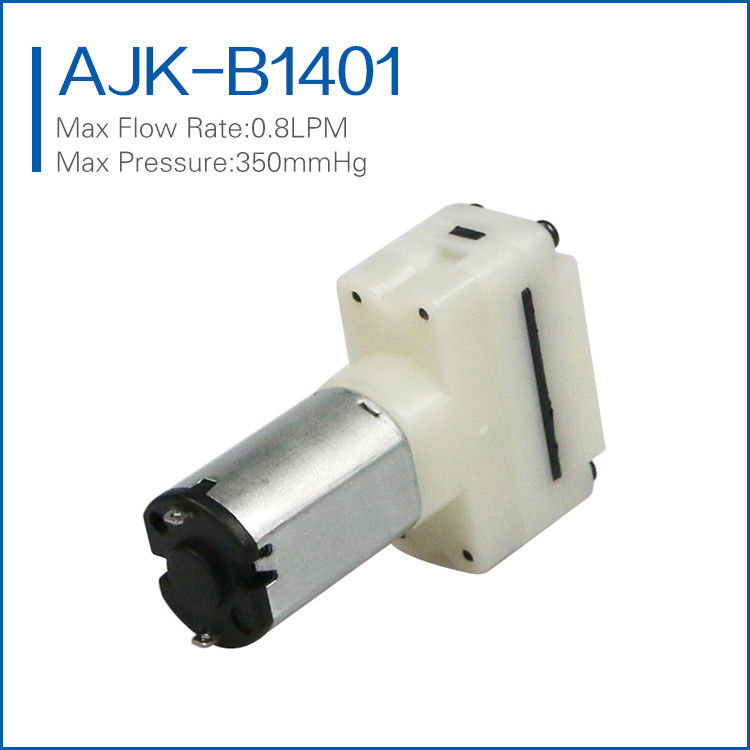

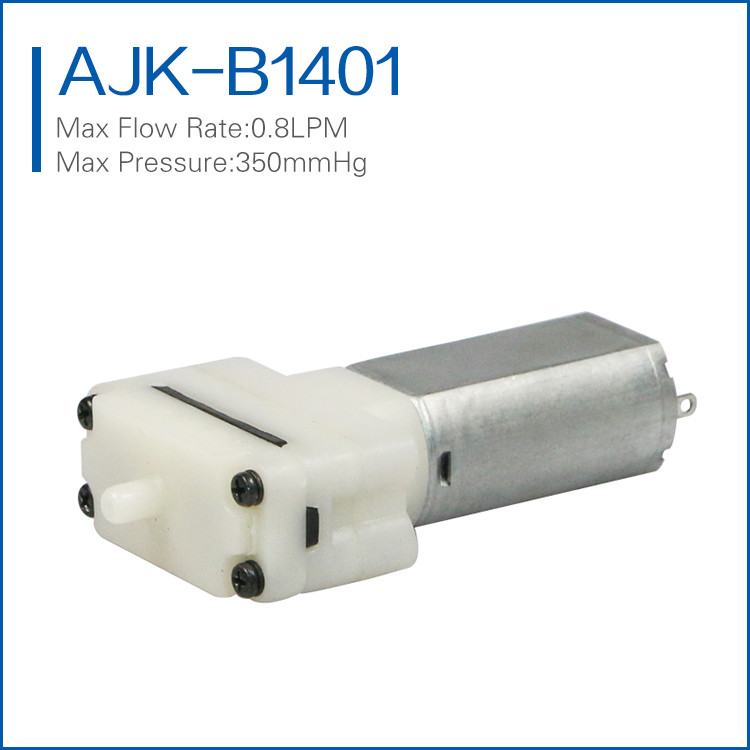

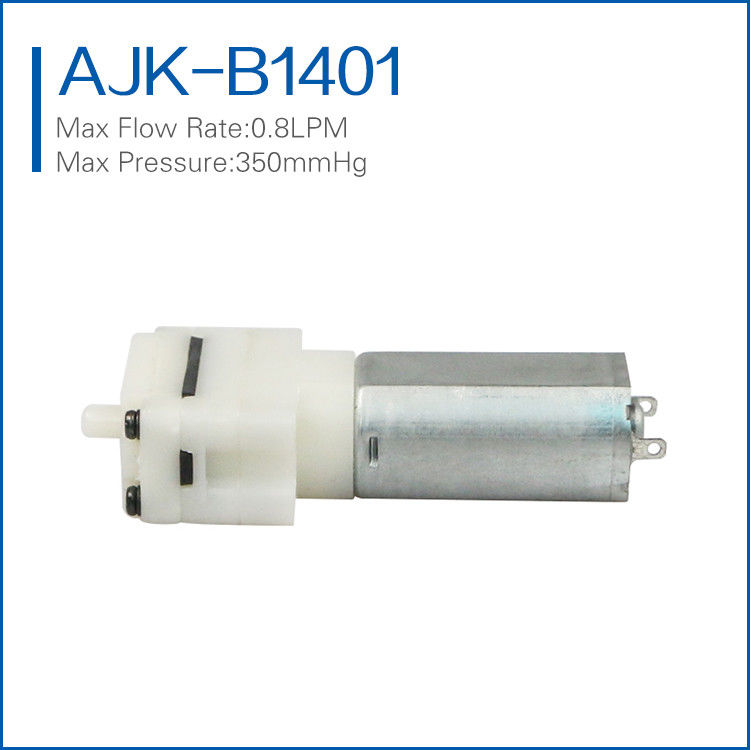

Low Flow Lightweight Micro Air Pump

Small size DC micro pressure pump, widely used for medical products, enviromental analyazers and so on.

  • Item No.:

    AJK-B1401 (3V)
  • Free Flow:

    0.8 L/min
  • Max Pressure:

    350 mmHg
  • DC Voltage:

    3 V
  • Applications:

    Medical equipment, healthcare equipment, household appliances

Product Details:

AJK Miniature Diaphragm Air Pump 3V delivers 0.8 L/min flow into a 100 CC tank within 9 s. It can be customized to meet your application's specific needs and life expectations


Features:

1.Small diaphragm pumps with longer life expectancy with our advanced proprietary diaphragm elastomer.
2.Small-size pumps have a unique, compact, and lightweight design making it ideal for portable applications.
3.Our 100% oil and grease-free pumps maintain the purity of your system and are commonly used in FDA-approved systems.
4.Our diaphragm pumps are uniquely balanced to minimize noise and vibration and to maximize life.
5.ISO9001, CB, FDA, PAHs, REACH, RoHS compliant.


Typical Applications:
Gas analyzers
Blood pressure monitoring
CO2 monitors
Compression therapy
Beauty instruments
Medical consumer devices

...

Model

Rated Voltage

Rated Current

Free Flow

Max Pressure

Noise

Media

AJK-B1401

DC 3.0 V

< 400 mA

0.8 L/min

350 mmHg

< 60 dB

Air/Gas



Dimention Drawing:

Low Flow Lightweight Micro Air Pump

Curve:

Low Flow Lightweight Micro Air Pump

Hot Tags :

Low Flow Micro Pressure Pump DC Mini Air Pumps DC Miniature Air Pump Low Flow Mini Air Pumps Low Flow Miniature Air Pump
